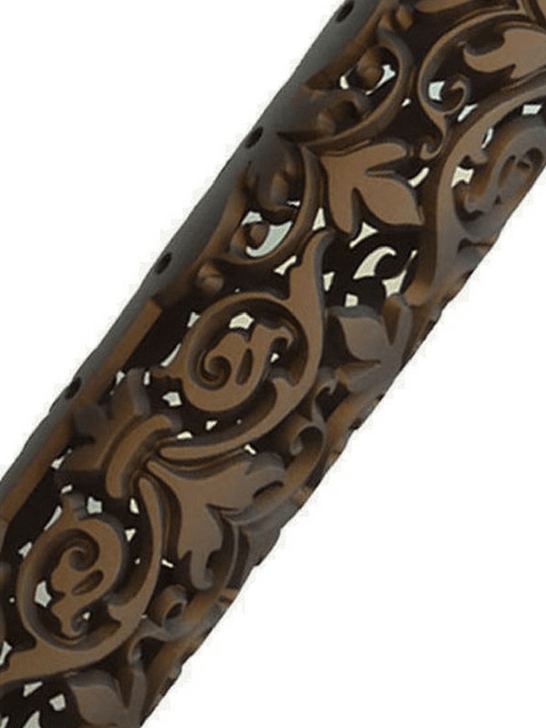

Pictured in GunCandy Java

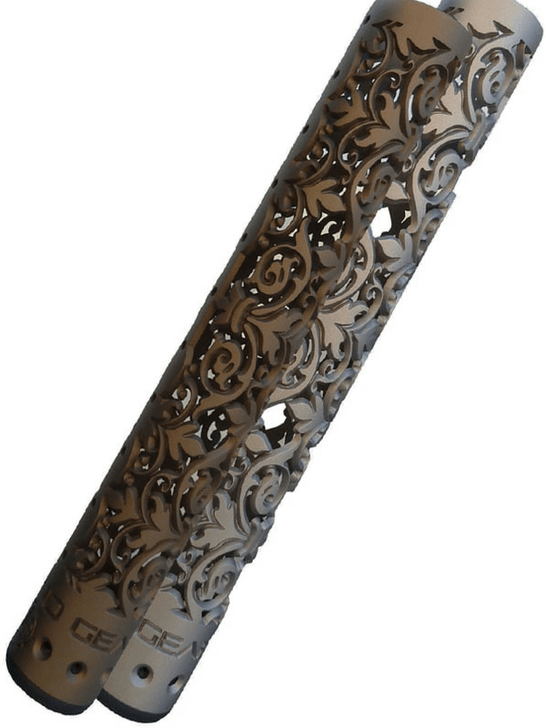

Calling all badass foxy women, the Fleur D’ Lis AR15 Handguard is another highly feminine handgrip that lets everyone know that you’re tough but stylish at the same time. When you walk into the range with this beauty, you’re going to get plenty of looks and plenty of praise – you can be sure of that. In fact we wouldn’t be surprised if the men step out of the way for you as you walk through – like you’re the ultra-femme Moses parting a Red Sea of testosterone with a badass rifle instead of a staff.
Like our other handguard, the Fleur D’ Lis grip is made from 6061 t6 aluminum which makes your AR15 rifle light as a feather, and the smaller diameter makes it ideal for more feminine hands. It also features pre-drilled holes for a tac rail (sold separately) and other accessories. With this beauty, you’re going to make being an ultra-feminine badass look easy, and you’ll make men think twice before they make fun of you for being a girl on the range, or in the field, wherever you prefer to strut your stuff. All of our handguards are ready to ship so order yours today!
- Available in 3 sizes, 9", 12" and 15"
- Weight in raw - 7.2oz, 8.8oz and 11.4oz
- Free float design
- Smaller diameter fits smaller hands better (2" exterior / 1.75" interior)
- Beveled edges makes for a smooth finish, rings and gloves don't hang up on.
- Made from 6061 t6 aluminum
- Includes AR15 barrel nut and mounting screws
- Pre-drilled and tapped on both top and bottom. Picatinny / tac rail available (sold separately)
- CeraKote brand color coating. Comes in black as a stocked color. For other CeraKote color please see color chart and include color name and number in your order notes. (Please allow additional time for this option).
- Please note that a low profile gas tube will be necessary for installation.
- AR10 barrel nut and mounting screws available as an upgrade
- MOE Duo currently not available in Blackberry Pearl
Don't see the color or size you were looking for? Contact us for lead time information
Handguard Mounting Instructions and Tips:
Before mounting handguard insure your receiver is mil-spec. If not, confirm fit of parts before beginning mounting instructions. Some non mil-spec receivers require barrel nut to be backed away from the upper receiver to allow clearance of over sized front lugs.
Step: 1) Once you have the old free float-tube and/or barrel nut removed, clean any grease or oil from the threads of the upper receiver extension.
Step: 2) This step is optional to allow easier installment of handguard. LocTite® is not required for installation of handguard. Apply a drop or two of blue LocTite® to the receiver threads and screw the large aluminum barrel-nut on until it stops, then back it off until the gas tube holes line up.
Step: 3) Insert the barrel and slide the steel castle bolt over the barrel and thread it into the aluminum barrel-nut; now, use a .184″ or 3/16″ bit or punch to to keep the gas tube holes aligned .
Step 4) With the punch inserted in the gas tube holes turn the steel castle bolt by hand until you get a good, solid hand-tight alignment with the barrel-nut and receiver. Once you have the two aligned, let it set for a 2-24 hours. After the blue LocTite® has cured between the barrel-nut and receiver, the steel insert and barrel can be removed.
Step 5) For final assembly insert the barrel, thread the steel castle bolt into the barrel-nut and once it is finger tight. Optional: Then back it off three or four turns and place a drop of blue LocTite® on the threads of the steel insert, right where it becomes visible out of the barrel-nut.
Step 6) Now torque the steel insert down to desired torque (according to your rifle manufacturer’s specifications). This can all be accomplished with or without the use of punch in the gas tube but the barrel-nut can move while you are torquing the steel castle nut, and then you will have to loosen it up and re-time it. We recommend using the punch to insure proper timing.
Step 7) Once you have installed the gas tube, slide the handguard onto the barrel nut and aligned the 6 radial holes with the corresponding holes in the barrel-nut. Now the 6 countersunk screws can be installed. Tighten until snug. DO NOT over tighten. Stripped screws are not covered by the warranty.
